Apeks MTX-RC Regulator

The Apeks MTX-RC Regulator takes the original MTX-R and adds the comfort and practicality of diver inhalation and venturi controls to the second stage and finishes the whole regulator in a new stylish satin grey colour. It combines rugged, military grade engineering with the super-smooth breathing experience that Apeks regulators are renowned for.

The MTX-RC first stage uses a forged body for optimal thermal performance and features heat exchanging fins on almost every part to increase the surface area as much as possible to further improve the cold water performance and help prevent ice formation. The internal components are of course environmentally sealed to prevent water coming into contact with critical parts and also minimising the risk of contamination.

There are four low pressure ports on a parallel port turret with a fifth high flow port under a protective cap. A high pressure port can be found on either side of the main body and are pre-angled for optimal hose routing.

Whereas the MTX-R second stage was factory tuned to meet stringent military requirements and specifications the MTX-RC has been modified to allow the diver to adjust the inhalation effort and venturi effects themselves, fine-tuning the performance of the valve to suit their own needs and diving. Much of the design is the same as the MTX-R.

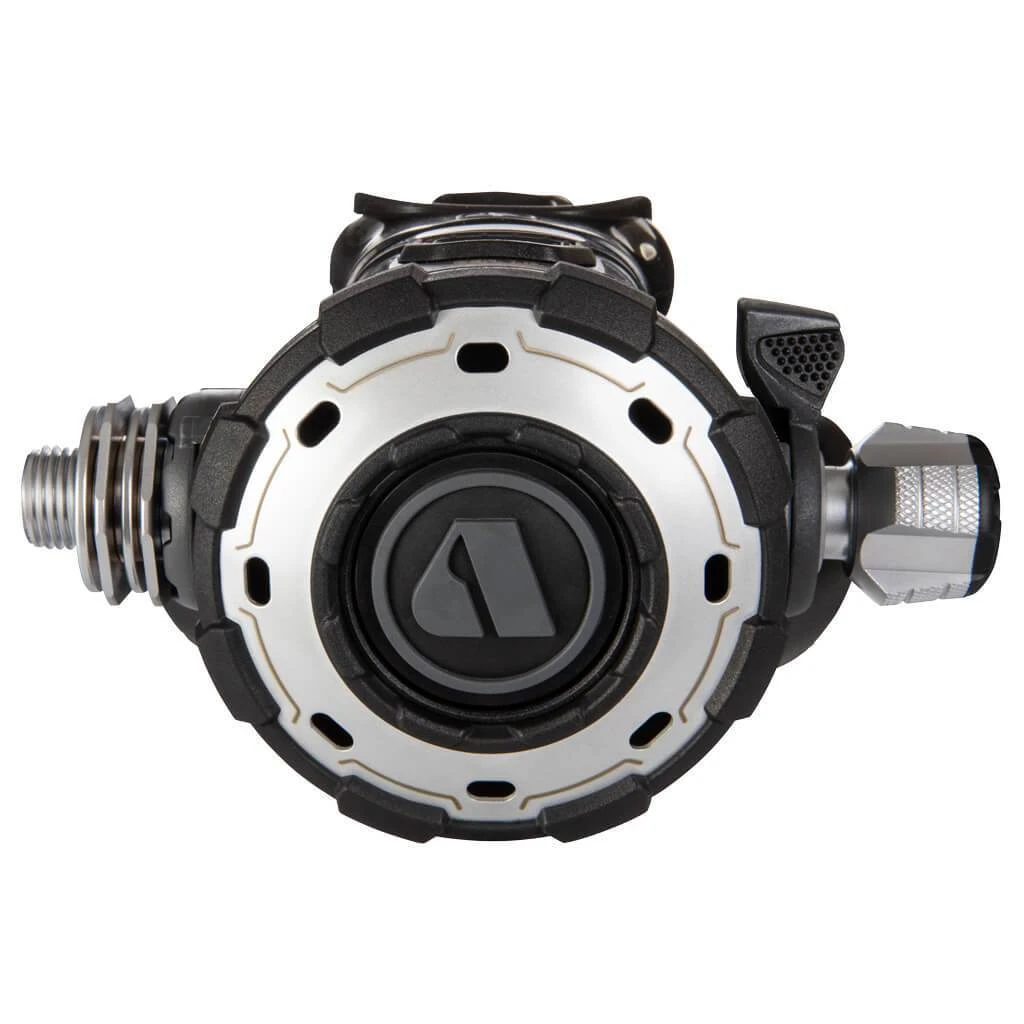

The MTX-RC second stage has a large heat exchanger around the hose inlet to dissipate the extreme cold temperatures generated in the pneumatically balanced metal valve as the compressed air depressurises into the housing. The second stage is tough and robustly made with a wide exhaust deflector and fitted with the typical Apeks regulator mouthpiece for excellent comfort and hygienic properties.

The regulator comes with a tactical style messenger bag to keep your regulators safe on your travels. It also happens to be good fit for many laptops!

The regulators are designed to be used with the matching Apeks MTX-RC Octopus.

---

---

Features

First Stage

• Satin plated brass body with heat exchanging ribs for maximum thermal performance.
• Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
• Ribbed diaphragm clamp for improved heat exchange in cold water conditions.
• Unique over-balanced diaphragm design as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
• 5 x medium pressure ports, 4 mounted on a rotating turret for improved hose orientation
• 2 x angled high pressure ports for optimal hose routing and fitting of transmitters.
• Double swivel hose for greater freedom of movement and comfort.
• Easy to grip DIN hand-wheel or over-moulded yoke hand-wheel, only requires one hand to release.
• DIN, Yoke and M26 Thread available, 300bar, 232bar and M26 300bar (O2) respectively.
• Tested for Octopus use – EN250A to 60 metres cold water.
• Nitrox/Oxygen compatible Up to 40% O2 outside the EU (European Union), within the EU anything above 21% O2 must use an M26 Connection.

2nd Stage

• Protective bumpers to protect the second stage from impacts and scratches in the most vulnerable places.
• Ergonomic and simple to use venturi lever.
• Oversize breathing effort adjuster makes adjustment easy in cold water whilst wearing gloves.
• Large purge button.
• Reversible second stage for either a left or right-hand gas supply configuration.
• A heat exchanger (patented) dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water for a more comfortable breathe.
• Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees.
• Comfo-bite mouthpiece
• Flexible nylon braided hose, which has better cold water performance than traditional rubber hose.
• Designed and manufactured in the UK.
• No single-use plastic in the packaging
